Entity Api Restructure Upgrade Guide

Introduction

We have restructured the APIs that were lumped under the Entity API group into coherent logical groups that makes their consumption easier, both via the documentation site and the SDKs. The immediate impact is that if you have been using the Entity based APIs in your game, the code will need to be updated when you upgrade your SDKs.

Prerequisites

The following conditions must be true for this upgrade guide to apply to you:

  1. You are using the Entity based PlayFab APIs.
  2. You have upgraded to a PlayFab SDK published on 8/9/2018 or later. Note: There are NO service level changes – i.e. Existing titles using old SDKs will work without requiring changes.

How to upgrade

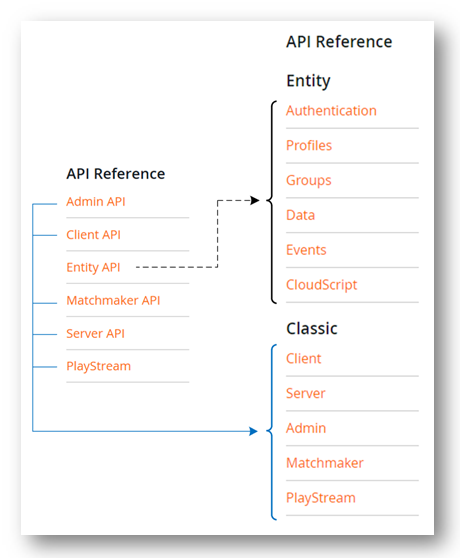

The fundamental impact of this change is the PlayFabEntityModel API group has been separated out into six different API groups that are logically bound together, as shown in the picture below.

Entity Breakdown

A full list of Previous Entity API -> New API mapping can be found in the APPENDIX 1

  1. Please note that the Classic API mapping has NOT been affected. The next section will walk you through an example of upgrading a C# SDK using PlayFabEntityAPIGroup to the new set of API groups.

Upgrade Example: C# SDK

Please follow the steps to upgrade your application.

Step 1: Change any using statements referencing PlayFab.EntityModels such as:

using PlayFab.EntityModels;
using PlayFab.DataModels;

You can now be granular in your selection of which of these APIs you want to bring in instead of importing the whole Entity API group.

Step 2: A more in depth coding example of the new API with comments regarding to how it looked before:

public async void Example()
{
       var logrequest = new PlayFab.ClientModels.LoginWithCustomIDRequest
       {
       	CustomId = "TestExample",
              CreateAccount = true,
              LoginTitlePlayerAccountEntity = true,
       };

       var loginResult = await PlayFab.PlayFabClientAPI.LoginWithCustomIDAsync(logrequest);
       var playfabId = loginResult?.Result?.PlayFabId;

       // PlayFab EntityAPI has been replaced here with the PlayFabProfilesAPI
       // and PlayFab.EntityModels has been replaced with PlayFab.ProfileModels
       var getProfileResult = await PlayFab.PlayFabProfilesAPI.GetProfileAsync(new
       PlayFab.ProfilesModels.GetEntityProfileRequest());
       var profile = getProfileResult?.Result?.Profile;
}

Please follow suit for other SDKs using the mapping from APPENDIX 1

Conclusion

We’re excited to expose the Entity APIs in a more intuitive way on our documentation site and in our code based on your feedback.
If you have any questions and comments, please contact us via the PlayFab Forums.

APPENDIX 1: OLD to NEW API Mappings

All the APIs below were previously part of the PlayFabEntityModel API Group. They are categorized under the new API Groups they’re part of now.

PlayFabProfilesApi
GetGlobalPolicy
GetProfile
GetProfiles
SetGlobalPolicy
SetProfilePolicy
PlayFabAuthenticationApi
GetEntityToken
PlayFabDataApi
AbortFileUploads
DeleteFiles
FinalizeFileUploads
GetFiles
InitiateFileUploads
GetObjects
SetObjects
PlayFabGroupsApi
AcceptGroupApplication
AcceptGroupInvitation
AddMembers
ApplyToGroup
BlockEntity
ChangeMemberRole
CreateGroup
CreateRole
DeleteGroup
DeleteRole
GetEntityToken
GetGroup
InviteToGroup
IsMember
ListGroupApplications
ListGroupBlocks
ListGroupInvitations
ListGroupMembers
ListMembershipOpportunities
RemoveGroupApplication
RemoveGroupInvitation
RemoveMembers
UnblockEntity
UpdateGroup
UpdateRole
PlayFabEventsApi
WriteEvents
PlayFabCloudScriptApi
ExecuteEntityCloudScript
