Getting Started with PlayFab - Chapter 4

Chapter Index:

Chapter 1 - Get started with players and tournaments

Chapter 2 - Set up your game's in-game economy

Chapter 3 - Explore automation

Chapter 4 - Try out content management

CDN

CDN stands for Content Delivery Network - an infrastructure to deliver assets (images, audio, binary content, etc) to the end user and focuses on speed and availability. CDN costs are independent from your tier (Essentials, Professional, etc) and require a payment account to be set up with PlayFab. This can be done by entering your credit card information in the Admin->Billing tab of your title. CDN costs are based on your usage - see the Content->File Management tab for more information on this. Please, contact developer success with questions.

PlayFab CDN stores individual assets as files uniquely identified by the file name, also referred to as key. This implies that you add, update, remove, and retrieve assets by key.

PlayFab CDN allows segregating assets by folders. Folder path to the asset becomes part of the asset key. The following is a valid asset key stored inside the folder named 'Android': `Android/Image.png`.

When the user is fetching assets, his requests are automatically routed to the nearest edge location, so content is delivered with the best possible performance. This, however, introduces delays into file management actions:

File uploading: Your file will be available immediately

File overwriting: The old file will appear to users for up to 24 hours until it's overwritten with the new file

File deletion: the file will continue to exist for up to 24 hours while the delete command removes it from all edge locations

Uploading assets

Before your users are able to fetch any asset, it must be uploaded to the CDN. This can be done using Game Manager. Navigate to "Content" tab (1). Select "File Management" sub-tab (2). Click "Upload Files" button (3):

You may select multiple files (1). Every file selected will appear in the list (2). Submit your files by clicking "Upload Files" button (3):

Uploaded files will appear in the list (1). Keep in mind that you may also manage folders: to create a folder click "New Folder" button (2):

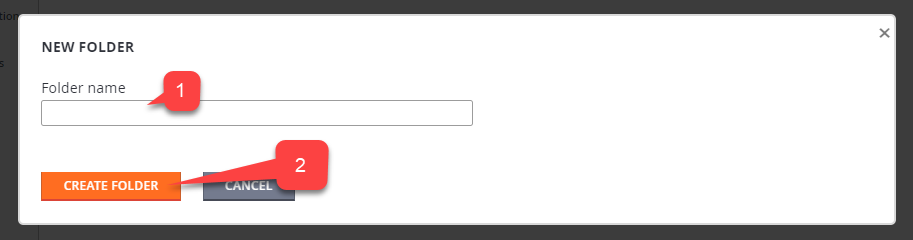

Fill in the folder name (1) and click "Create Folder" (2):

This will create a new folder in the tree. You may then select this folder and upload the files normally:

Alternatively, you may upload assets via code using Admin SDK. This is a two step process: first, you call GetContentUploadUrl and  obtain the pre-signed URL that will authorize your upload. Then use the URL to make HTTP PUT request and provide your data and (optionally) content type. Consider the following snippet that shows how to get pre-signed URL:

public void UploadFileToCDN(string key, byte[] content, string contentType = "binary/octet-stream") {
    GetUploadUrl(key, contentType, presignedUrl => {
        PutFile(presignedUrl, content, contentType);
    });
}

void GetUploadUrl(string key, string contentType, Action<string> onComplete) {
    PlayFabAdminAPI.GetContentUploadUrl(new GetContentUploadUrlRequest() {
        ContentType = contentType,
        Key = key
    }, result => onComplete(result.URL),
    error => Debug.LogError(error.GenerateErrorReport()));
}

void PutFile(string presignedUrl, byte[] content, string contentType = "binary/octet-stream") {
    // Implement your own PUT HTTP request here.
    // - Must use PUT method
    // - Must set content type Header
}

You may then check the result through the PlayFab Game Manager and make sure the file is in the list.

Fetching Assets

Downloading the asset via code is identical to uploading the asset: it is a two step process. First, you make a call to GetContentDownloadUrl and obtain pre-signed URL that will authorize your download. You then use pre-signed URL to make HTTP GET request and fetch the data. Consider the following snippet that shows bare bones of the process:

public void DownloadFileFromCDN(string key) {
    GetDownloadUrl(key, presignedUrl =>
    {
        GetFile(presignedUrl);
    });
}

void GetDownloadUrl(string key, Action<string> onComplete) {
    PlayFabClientAPI.GetContentDownloadUrl(new GetContentDownloadUrlRequest() {
        Key = key,
        ThruCDN = true
    }, result => onComplete(result.URL),
    error => Debug.LogError(error.GenerateErrorReport()));
}

void GetFile(string preauthorizedUrl) {
    // Implement your own GET HTTP request here.
}

As mentioned above, CDN may involve latency in regards to files updates. During development it is sometimes useful to force fetch the latest, fresh files. GetContentDownloadUrl call allows you to set "ThruCDN" parameter to false. The URL returned will then point to non-cached fresh files. (Your published game client should never use this option!)
