A/B Testing with TitleData, A/B Test Buckets and Cloud Script

This example illustrates how to complement PlayFab built-in features with something which is not a fully integrated feature, yet. AB Testing Title Data is a planned feature. It is possible to build your own solution now, using Cloud Script:

Requirements:

Optional Requirements:

  • The final example uses Unity, but this technique can be used with any SDK

General Idea and Implementation

We already have a built-in feature of defining AB segments for player. Let's reuse those segments to return Title Data based on which bucket our player belongs to.

First, we will need an AB test. Please, follow Creating AB Test Guide to create AB Test. Once test is created, you will see IDs of each individual buckets:

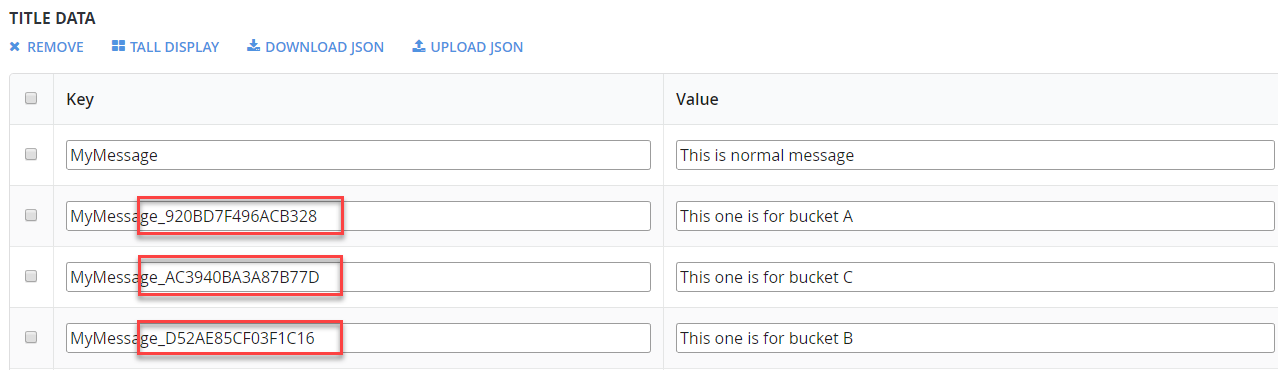

Functionally, Bucket ID is the same as normal Segment ID: an API call to GetPlayerSegments will return both Segment IDs and AB Test Bucket IDs. We can use this to our advantage and introduce convention for AB-tested Title Data keys, as shown on the picture below:

We first introduce regular entry with key "MyMessage". We then introduce AB-version for each bucket. The key is composed using original key and a suffix in a form '_BUCKETID'. At any point in time, if we are given an original key and segment ID, we can easily compose a key for an entry specific for this segment/bucket.

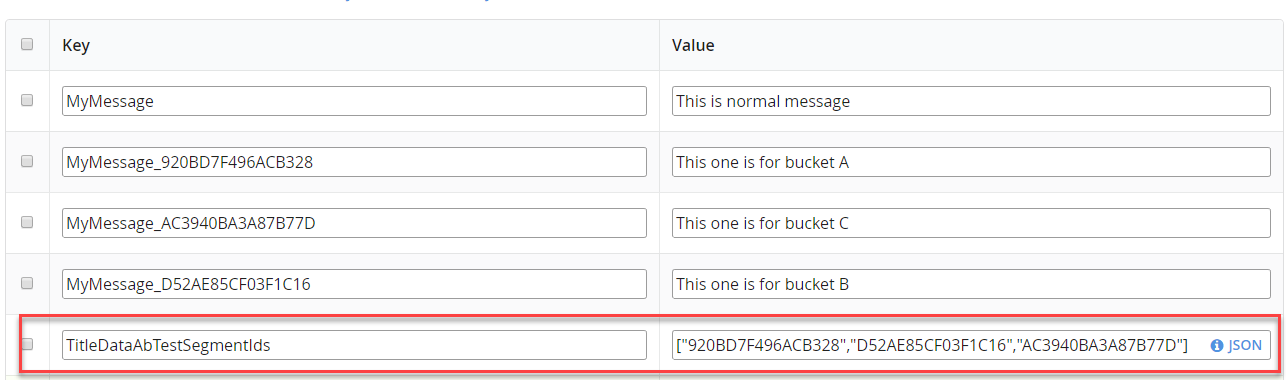

Our next step is defining one more entry - a list of all the bucket IDs participating in the testing. In this case we have three of those:

Note: make sure to use double quotes ( " ). Otherwise JavaScript runtime will not be able to parse it properly.

Now let us define a brand new API call using Cloud Script. This API call is named "GetTitleDataAB" and performs a very simple procedure:

  1. We receive regular Title Data Key (ex. "MyMessage") from the client, via args
  2. We get all the bucket IDs participating in the testing
    • We do this by reading "TitleDataAbTestSegmentIds" key from our title data
  3. We get all the segment IDs player belongs to
  4. If player does not belong to any bucket, we return the value for the original key
    • ex "MyMessage" -> "This is normal message"
  5. If player belongs to one of tested segments, we assemble a new key using our convention and try to fetch the value for this key:
    • ex. if player belongs to bucket with ID 920BD7F496ACB328, we read the value for "MyMessage_920BD7F496ACB328" key.
  6. If no bucket-specific value was defined, we, again, return the value for the original key

Let's inspect the following implementation (please, read the comments for further explanation):

// Special key in the Title Data that contains an array of AB buckets that participate in the testing
var TITLE_AB_TEST_TITLE_KEY = "TitleDataAbTestSegmentIds";
handlers.GetTitleDataAB = function (args, ctx) {
    // The data key the player originally requested.
    var dataKey = args.TitleKey;

    // A variable to store AB segment of the player, if any
    var currentAbTestSegmentId = null;

    /*
     * We store a list of bucket IDs that participate in the AB testing in the title data.
     * This line extracts an array of such ids
     */
    var requestedTitleData = server.GetTitleData({ Keys: [TITLE_AB_TEST_TITLE_KEY, dataKey] });
    var defaultValue = requestedTitleData.Data.hasOwnProperty(dataKey) ? requestedTitleData.Data[dataKey] : null;
    var segmentIdJson = requestedTitleData.Data.hasOwnProperty(TITLE_AB_TEST_TITLE_KEY) ? requestedTitleData.Data[TITLE_AB_TEST_TITLE_KEY] : null;
    var abTestSegmentIds = JSON.parse(segmentIdJson);

    // This line extracts all the segments current player belongs to
    var playerSegments = server.GetPlayerSegments({ PlayFabId: currentPlayerId }).Segments;

    // Locate first ABTest segment the player belongs to
    for (var i = 0; i < playerSegments.length; i++) {
        var playerSegmentId = playerSegments[i].Id;
        if (abTestSegmentIds.indexOf(playerSegmentId) !== -1)
            currentAbTestSegmentId = playerSegmentId;
    }

    // If player does not belong to any tested segment, return a value for the original key
    if (!currentAbTestSegmentId)
        return defaultValue;

    /*
     * If player belongs to one of AB tested segments
     * we use ID of this segment to construct special key
     * First part of this key is the original key
     * Followed by underscore ('-') we add a suffix, which is ID of the bucket the player belongs to.
     */
    var abTestedKey = dataKey + "_" + currentAbTestSegmentId;

    // We try to get a value using our special key
    var result = server.GetTitleData({ Keys: [abTestedKey] });
    if (result.Data[abTestedKey])
        return result.Data[abTestedKey];
    else
        return defaultValue;
};

Testing

Once the CloudScript from the previous section is uploaded, the following code snippet can be used to test the described technique:

public void GetContent() {
    PlayFabClientAPI.ExecuteCloudScript(new ExecuteCloudScriptRequest {
        FunctionName = "GetTitleDataAB",
        FunctionParameter = new Dictionary<string, string>() { { "TitleKey", "MyMessage" } },
    },
    result => Debug.Log(JsonWrapper.SerializeObject(result.FunctionResult)),
    error => Debug.LogError(error.GenerateErrorReport()));
}

[Optional] Demonstration (with Unity)

Deploy the Cloud Script sample to your PlayFab title. Once this is done, open a new Unity project. Make sure you have PlayFab SDK imported and title setting configured.

Create an empty scene and an empty game object. Attach the following script to the game object:

// Import statements to gain reference to all PlayFab classes we need
using System.Collections;
using System.Collections.Generic;
using PlayFab;
using PlayFab.ClientModels;
using UnityEngine;

public class PlayerABTestingTitle : MonoBehaviour {
    // We simply start coroutine on start
    public void Start() {
        StartCoroutine(ABTester());
    }

    private IEnumerator ABTester() {
        // Repeat 10 times
        for (int i = 0; i < 10; i++) {
            // Waiting flags
            bool isLoggedIn = false;
            bool isAbDataFetched = false;

            // First, we log as a certain "fake" player using custom ID.
            // The player is different with each iteration, as custom ID includes the value of "i"
            PlayFabClientAPI.LoginWithCustomID(new LoginWithCustomIDRequest {
                CustomId = "CustomID-"+i,
                CreateAccount = true
            }, result =>
            {
                // Once we are logged in, set the log in waiting flag to true
                isLoggedIn = true;
                Debug.Log("Logged in as Player "+i);
            },OnError);

            // Coroutine will wait here, until we set log in waiting flag to true
            while(!isLoggedIn) yield return null;

            // Secondly, we execute Cloud Script call to our function called "GetTItleDataAB"
            // We pass in TitleKey. In this example, it is "MyMessage"
            PlayFabClientAPI.ExecuteCloudScript(new ExecuteCloudScriptRequest {
                FunctionName = "GetTitleDataAB",
                FunctionParameter = new Dictionary<string, string>() { { "TitleKey", "MyMessage" } },

            }, result =>
            {
                // Once data is obtained, we set isAbDataFetched to true and log the result
                isAbDataFetched = true;
                Debug.Log(result.FunctionResult);
            },OnError);

            while(!isAbDataFetched) yield return null;
        }
    }

    private void OnError(PlayFabError obj) {
        Debug.LogError(obj.GenerateErrorReport());
    }
}

Start the scene and open the console. If everything is configured properly, you will see how application signing into PlayFab using different player accounts and we get different Title Data fetched each time:

At this point, you can use this implementation to AB-test any data in your title.
