Getting Started With PlayFab + Snowflake

This article describes how to enable the Snowflake add-on from PlayFab, and then provides some starter examples of queries you can do in Snowflake to show off the integration. If you are looking for a high-level description of why Snowflake integration with PlayFab is cool, you may want to start with our introductory blog post first.

Setting it up

The first step in using Snowflake with PlayFab is to create a Snowflake account. If you already have a snowflake account, you can skip this step. Otherwise, you can create a new snowflake account for free with a trial period.

Create a "standard" account in the "US-West region". Snowflake provides a 30 day trial period, so you can evaluate Snowflake risk-free, though you may need to provide billing information.

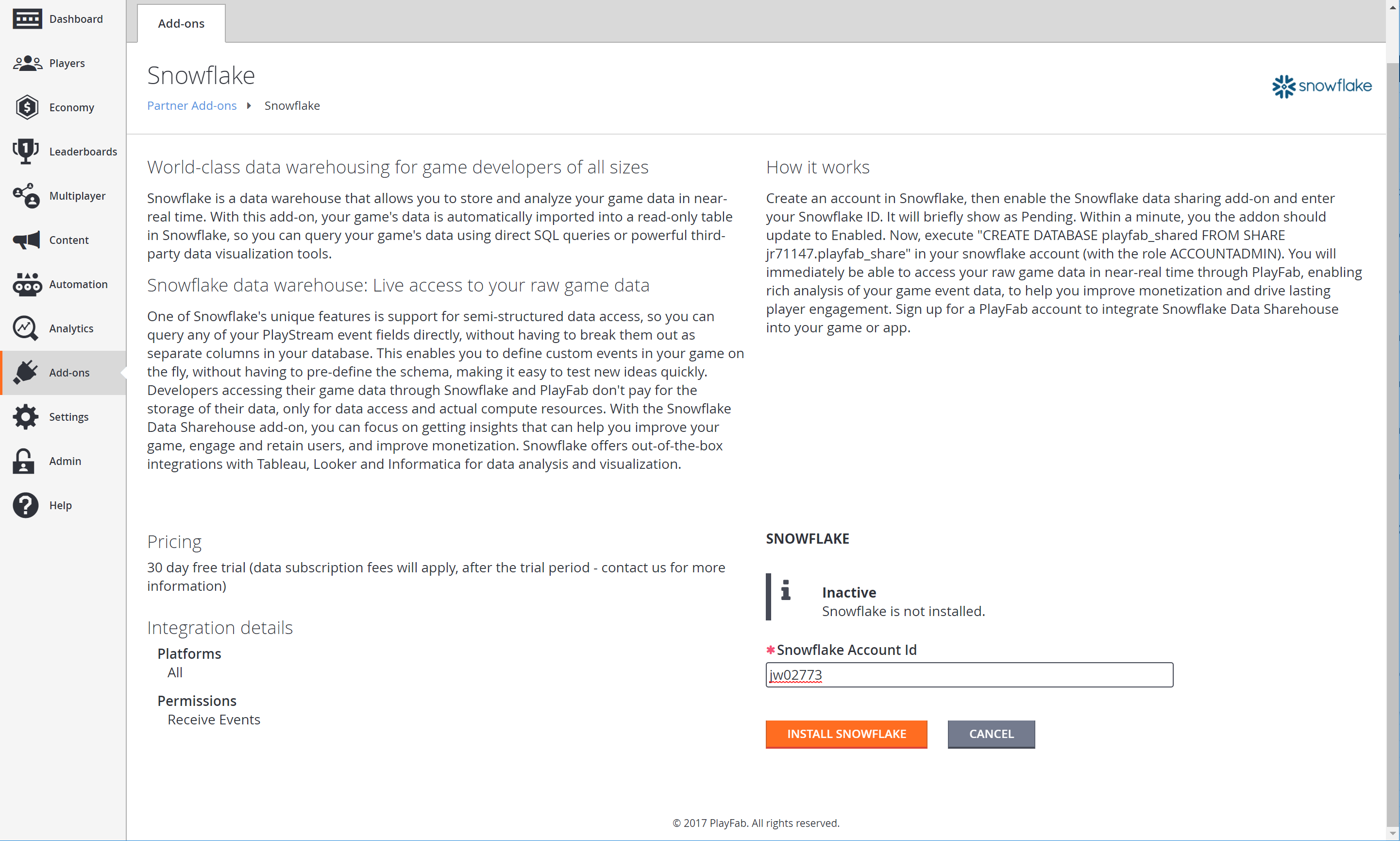

After your Snowflake account is set up, you can then enable the Snowflake add-on in PlayFab by providing your Snowflake account ID. You can find your account ID in the URL you are given to log into Snowflake. It will look something like "jw02773":

After you click "Install Snowflake" the add-on will enter the pending state for about a minute. When done, a "feed" of your data will have been created. The next step is to subscribe to that feed from your Snowflake account.

To subscribe, log in to your Snowflake Account. Then in a worksheet, execute this SQL command, with the role ACCOUNTADMIN:

CREATE DATABASE playfab_shared FROM SHARE jr71147.playfab_share

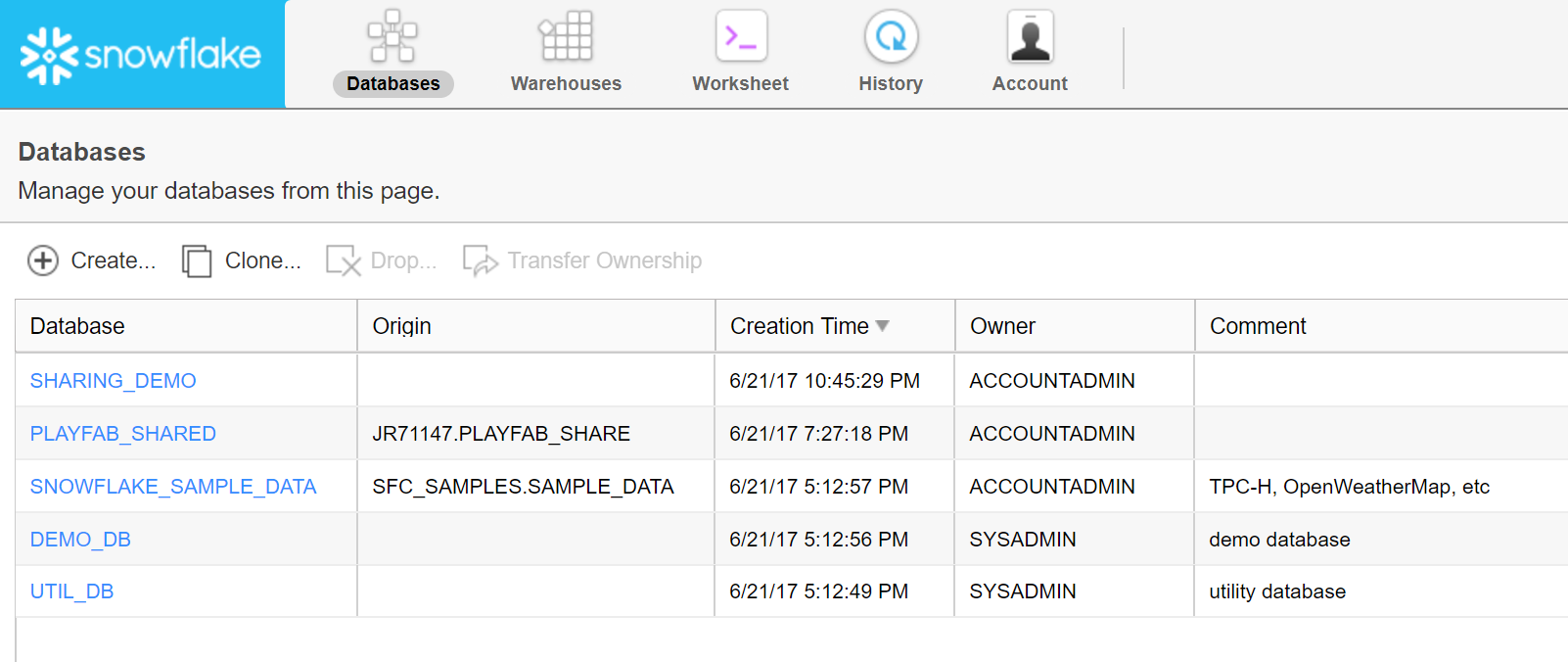

That will create a new database in your Snowflake account, called "PLAYFAB_SHARED" which is a read-only view of your game's PlayStream data from PlayFab.


The PlayFab_Shared database

Let's take a moment to discuss the contents of this database. It has one schema, called playfab_shared. In this schema, there is one view. It is called playfab_archive_shared. In this view, you can see all events for all game titles that are linked to this Snowflake account.

The playfab_archive_shared View

This view's schema deserves some explanation.

The most important column is called "p" (for payload). The type of this column is OBJECT, which is Snowflake's way of saying JSON. See later examples, or their docs on semi-structured data to understand more about how this works. The other columns are effectively for indexing purposes. One important note is that the "TS" column is truncated to the hour for more effective indexing. If you need the exact time of an event for a query, access the raw timestamp from the payload using "to_timestamp(p:Timestamp)".

Running your first query

Now that you have verified that the PLAYFAB_SHARED database exists, you can run your first query. Let's run a simple query to count how many unique players played your game in the last 24 hours (DAU). Enter the following in a worksheet, select it, and click "execute" (or press ctrl-enter):

select count (distinct entity_id)
from PLAYFAB_SHARED.PLAYFAB_SHARED.PLAYFAB_ARCHIVE_SHARED
where event_name = 'player_logged_in' and ts >= dateadd(day, -1, current_date)
and title_id = '<my title id goes here in all caps>'

This query may take a few minutes to run depending on the size of your database instance, and how much data your game contains, but when done you'll see the answer in the results section.

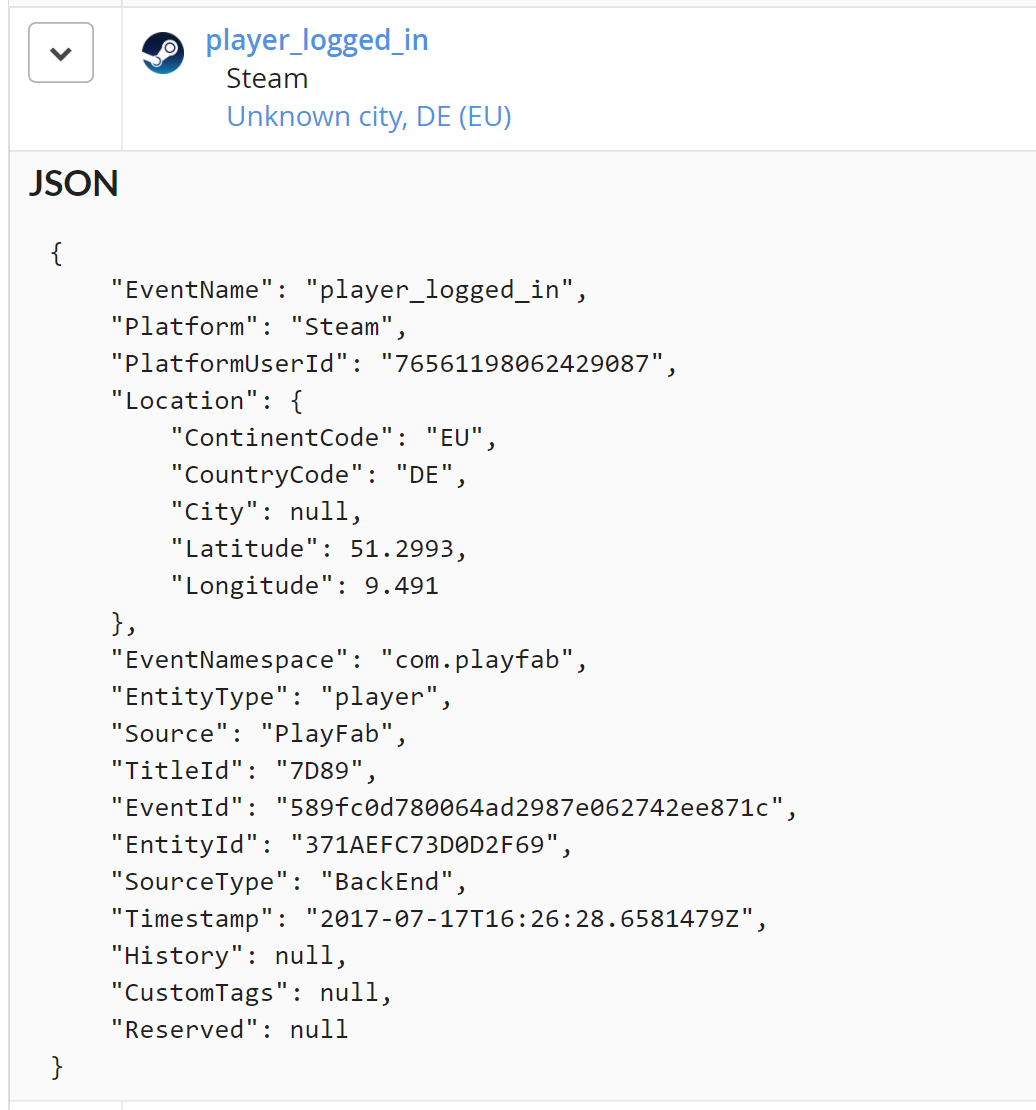

For a more advanced query, examine the raw JSON of the "player_logged_in" event using the PlayFab analytics tab.


Thanks to Snowflake's ability to parse any fields of a JSON object, you can access any of these fields. Let's run a query to count how many players are coming from which countries. Enter and run the following query in your worksheet:

select
  p:Location.CountryCode as country,
  count(distinct entity_id) as players,
  count (*) as logins
from PLAYFAB_SHARED.PLAYFAB_SHARED.PLAYFAB_ARCHIVE_SHARED
where event_name = 'player_logged_in' and ts >= dateadd(day, -1, current_date)
and title_id = '<my title id goes here in all caps>'
group by country
order by players desc

Notice how this query is not just accessing an arbitrary field inside the "P" column, but a subfield inside an object (Location.CountryCode).

You can then export these results as a CSV file, and load them into Excel or some other tool for easy visualization.

Cross database querying

So far these examples have used the PlayFab_Shared database directly, however this database is read only. You cannot modify this database, or create temp tables, something you will need to do to improve performance. Therefore for any serious work, you should create your own database, and reference the PlayFab_Shared database with a fully qualified name. That is, "PLAYFAB_SHARED.PLAYFAB_SHARED.PLAYFAB_ARCHIVE_SHARED". Snowflake is perfectly capable of access tables across databases, you just have to ask.

Making schema with views

As we've seen above, one of the best parts about snowflake is its ability to parse JSON objects. But it is tiring (and error prone) to access the same values out of payloads with known schema. This is where views come in. Views are great here because they act like tables in traditional SQL databases, enforcing schema on the data. But it's way easier to change a view than to migrate a table. For example, we can create a "logins" view based on the playfab login event since that event has a known schema. Internally, we use a view to parse out the bits and pieces we know we'll need.

Run this command in your own database:

create view logins as
(
          select
          event_id,
          title_id,
          ts,
          to_timestamp(p:Timestamp) as exact_ts,
          entity_id,
          to_varchar(p:Platform) as platform,
          to_varchar(p:PlatformUserId) as platform_user_id
          from PLAYFAB_SHARED.PLAYFAB_SHARED.PLAYFAB_ARCHIVE_SHARED
          where event_namespace = 'com.playfab' and event_name = 'player_logged_in'
          and title_id = '<my title id goes here in all caps>'

)

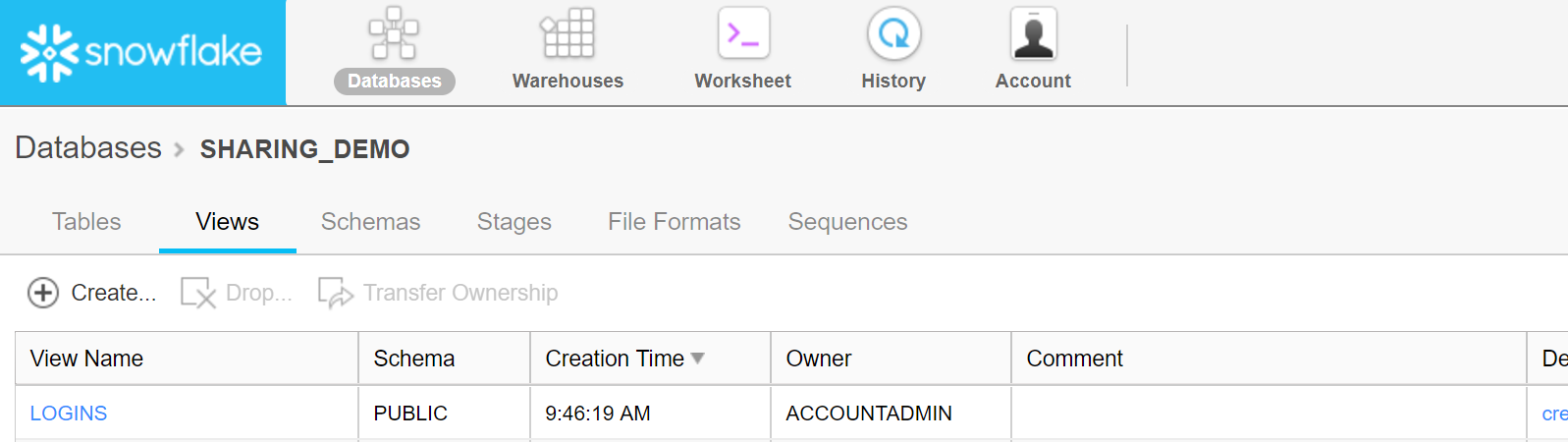

When done, you will have a custom view in your database that can be used to access the login data directly.


There are a couple things to note. First of all, we used some of the fixed columns, like "event_id" and "title_id". We also picked some columns out of "p", such as "p:Platform". But properties chosen from inside JSON objects may be JSON objects themselves, so we need to tell Snowflake what type they really are. That's what "to_varchar" is doing. We recommend building these sort of views as you need them, as views like this are primarily a code factoring tool. They just let you forget what the actual naming (and capitalization) of the properties in "p".

Now you can run queries like

select count(distinct entity_id) from logins where '2017-6-1' <= ts and ts <'2017-6-2'

to get the DAU on June 1st. With this view, we can also compute 30 day retention.

with logins_yesterday as
(
  select distinct entity_id
  from logins
  where dateadd(day, -1, current_date) <= ts and ts < current_date
),
logins_thirty_days_ago as
(
  select distinct entity_id
  from logins
  where dateadd(day, -30, current_date) <= ts and ts <dateadd(day, -29, current_date)
),
login_both as
(
  select * from logins_thirty_days_ago
  intersect
  select * from logins_yesterday
)
select
(select count(*) from logins_thirty_days_ago) as thirty_days_ago_dau,
(select count(*) from login_both) as retained,
retained / thirty_days_ago_dau as thirty_day_retention

Performance considerations

Our table is designed so that queries speeds should depend only on the size of the title's data your querying. However, to reap this benefit you must include a title id filter in your own query. This is true even if there is only one title's data being shared. This is a consequence of the additional security that secure views provide.

When dealing with very large datasets (100s of millions of events), you will need to think about indexing as a way to speed up access for your queries. If you find yourself running nasty queries (I.E. large joins, or full table scans), you should definitely read Snowflake's docs on the matter. You should also know how we have indexed our tables.

The playfab_archive_view is indexed by TitleId, then TS. TitleId is index first because the secure view always run the title id filter first. We automatically apply a title_id filter for all queries. However, we apply that filter inside the secure view, so it may not contribute to optimization. So it is important for you to also include a title_id filter in your query statements (where title_id = '<your title id here>').

The TS index is important because queries often have a time range. We use a truncated timestamp because snowflake can index better on a column with a relatively small number values. A block of data, where each row has the same timestamp, is more efficient to scan, because it simply already knows the values in that column. The efficiency boost is decent, and the raw timestamp is always available via "to_timestamp(p:Timestamp)". Additionally, many of the most common queries (such as DAU, MAU), don't need more granularity than hour, anyway. In practice, I have found I rarely need to access the exact timestamp.

If you are running a query without a timestamp filter, that is still ok. It may scan some extra data, but snowflake is still pretty fast. Creating a few temp tables for slow query results can go a long way to speeding up your process.

Security and Sharing

You might be concerned that everyone is using the same view. In a traditional database, this would be a gigantic security risk. However Snowflake is not your average database. The playfab_archive_shared view is actually a Secure View. The main point is that other viewers are guaranteed to never know your data exists. (For those of you who are interested, it means the TitleId "where" clause runs unoptimized to thwart subtle attacks that take advantage of order of operations changes made by the sql compiler). This secure view knows what account it's running in, and we keep track of what titles are enabled for what accounts (via the add-on). So in effect, every account sees a different view. Furthermore, all data in snowflake is backed up, encrypted at rest, and everything else you would expect. Check out Snowflake's security certifications for further reading about Snowflake's secrity.

Data Visualizations

Tableau, Looker, and many other visualizers have first party support for Snowflake. Making your own partially rolled up tables will dramatically improve your experience with visualization tools, so that it doesn't have to duplicate large computations.

For example, consider this query to generate a latitude and longitude map of logins:

create or replace table login_map as
(
  select p:Location.Latitude as latitude, p:Location.Longitude as longitude
  from PLAYFAB_SHARED.PLAYFAB_SHARED.PLAYFAB_ARCHIVE_SHARED
  where event_name = 'player_logged_in' and ts >= dateadd(day, -1, current_date)
)

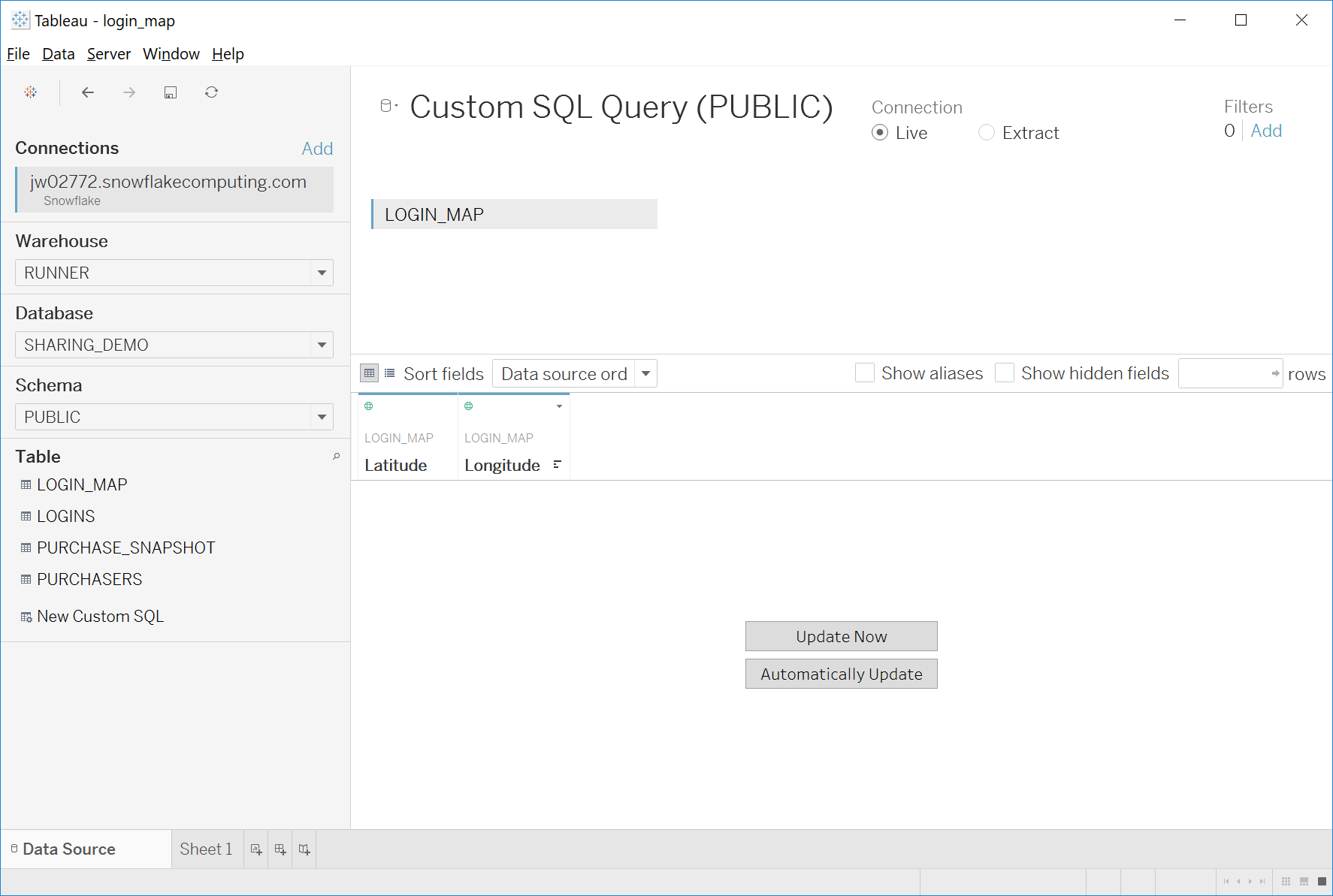

We can then tell Tableau to retrieve data from this table:



and then use the latitude and longitude data to generate a map.
