Getting Started with Kongregate and HTML5/JavaScript

This example shows minimal setup required to authenticate your players through Kongregate and HTML5/JavaScript.

Requirements:

Setting up Kongregate App

Kongregate requires you to upload a preview version of the app, before you gain access to necessary API information. So we need to prepare an index.html file with the following content:

<!doctype html>
<html lang="en-us">
<head></head>
<body>
 <h1>Placeholder</h1>
</body>
</html>

Navigate to Kongregate website, select "Games" tab (1). Then click "Upload your game" button (2), as shown on the picture below:

A page to set up a new application will open. Make sure to type in the application name (1), description (2) and select a category (3). Submit the new app by clicking "Continue" button (4), as shown on the picture below:

You will be transferred to the application upload page. First and very important, make sure to save the URL from your web address bar. This will save you a lot of time trying to restore access to the application once you close the page.

Once this is done, select the prepared index.html file as your Game File (1) and set up the screen size (2). Make sure to accept all the required licenses (3). Upload your application by clicking "Upload" button in the bottom of the page (4), as shown on the picture below:

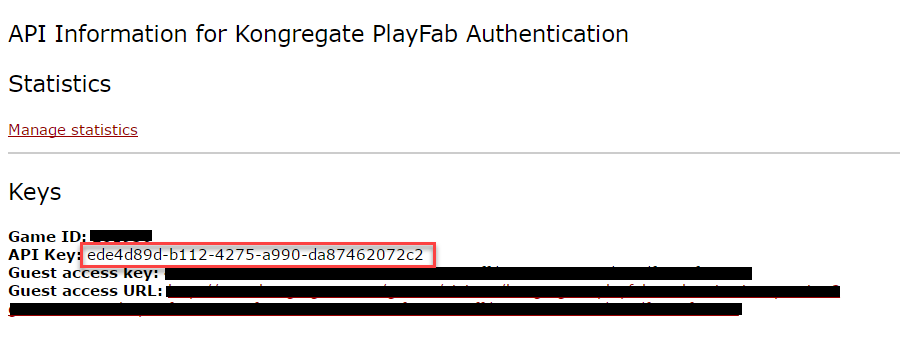

Once the preview opens, ignore the content and head straight to the API information, as shown on the picture below:

Locate the API Key and save it for later use.

Configuring PlayFab title

In your PlayFab Title Game Manager navigate to Addons (1), then locate and click "Kongregate" (2), as shown on the picture below:

A page will open, allowing you to set up Kongregate integration. Enter the API Key (1) you acquired in the previous section and hit "Install Kongregate" button (2), as shown on the picture below:

If given no error message, you have configured PlayFab title integration with your Kongregate application.

Preparing some code

Use the following example code to populate the index.html for your game:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
  "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns='http://www.w3.org/1999/xhtml'>
<head>
  <title>Kongregate Javascript API example</title>
  <!-- Import PlayFab API -->
  <script src='https://download.playfab.com/PlayFabClientApi.js'></script>
  <!-- Import JQuery, required specifically by this example, does not effect either API -->
  <script src='https://ajax.googleapis.com/ajax/libs/jquery/2.2.0/jquery.min.js'></script>
  <!-- Import Kongregate API -->
  <script src='https://cdn1.kongregate.com/javascripts/kongregate_api.js'></script>
</head>

<!-- Define elements with IDs to show current state of things and a couple of buttons -->
<body style='background-color:white'>
  <span id='init'>Initializing...</span>
  <div id='content' style='display:none'>
    <div>Kongregate API Loaded!</div>
    <div id='username'></div>
    <div id='user_id'></div>
    <!-- This button will invoke Kongregate Auth Box -->
    <button id='login' style='display:none'
      onclick='kongregate.services.showRegistrationBox()'>Sign in/register</button>
    <!-- This button will invoke PlayFab authentication process -->
    <button id='login'
       onclick='loginInUsingPlayFab()'>PlayFab Login With Kongregate</button>
  </div>

  <script type='text/javascript'>

    // This function just updates UI, nothing else
    function updateFields() {
      $('#init').hide();
      $('#content').show();

      // Visualize Kongregate Auth Data
      $('#username').text('Username: ' + kongregate.services.getUsername());
      $('#user_id').text('User ID: ' + kongregate.services.getUserId());

      // If not authenticated in Kongregate, allow to use Login button
      if(kongregate.services.isGuest()) {
        $('#login').show();
      } else {
        $('#login').hide();
      }
    }

    // The function prepares and triggers PlayFab LoginWithKongregate API call
    function loginInUsingPlayFab() {
      // Setting up playfab title ID
      PlayFab.settings.titleId = "159F";

      // forming request
      var request = {
        TitleId: PlayFab.settings.titleId,
        AuthTicket: kongregate.services.getGameAuthToken(),
        KongregateId : kongregate.services.getUserId(),
        CreateAccount: true
      };

      console.log('logging in');
      // Invoke LoginWithKongregate API call and visualize both results (success or failue)
      PlayFabClientSDK.LoginWithKongregate(request,
      function(result){
        $('<div></div>').html('Authenticated via playfab').appendTo('#content')
        console.log("success");
      },
      function(err){
        $('<div></div>').html('Problem occured: ' + PlayFab.GenerateErrorReport(err)).appendTo('#content')
        console.log("failure");
      });
    }

    // The entry point for Kongregate initialization
    kongregateAPI.loadAPI(function(){
      window.kongregate = kongregateAPI.getAPI();
      updateFields();
      kongregate.services.addEventListener('login', function(){
        updateFields();
      });
    });
  </script>
</body>
</html>

Testing

Use the URL you saved earlier to access your application upload page. Select index.html as your Game File (1) and set up the screen size (2). Make sure to accept all the required licenses (3). Upload your application by clicking "Upload" button in the bottom of the page (4), as shown on the picture below:

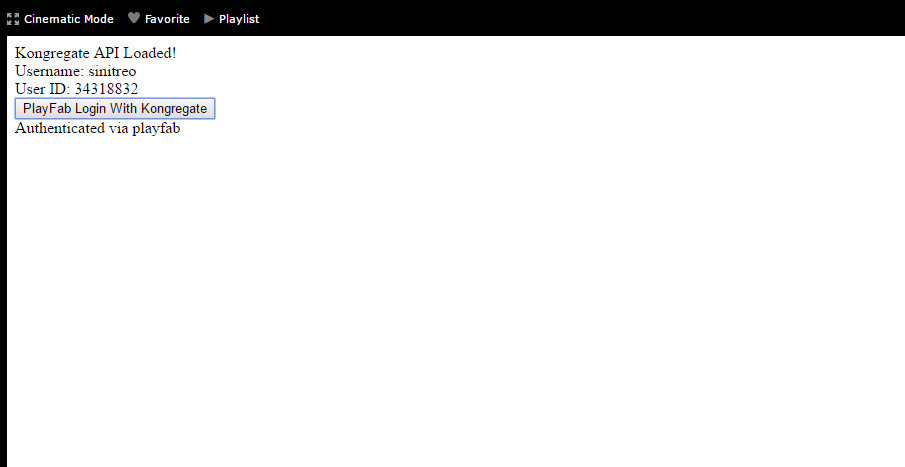

Once the preview loads, wait for the application to obtain Kongregate UserID and Username. Once done, click "PlayFab Login With Kongregate" button. In a moment, if you get "Authenticated via PlayFab" message, this means you have successfully logged in using PlayFab and Kongregate:
