Getting started with Photon and Unity

This guide shows how to set up Photon Multiplayer to work with PlayFab. Currently, PlayFab offers the following Photon integrations:

  • Authenticate Photon players with PlayFab
  • Listen for room events using PlayFab Cloud Script callbacks

We will illustrate how both features work using latest Photon Unity example project.

Prerequisites:

  1. Unity project with PlayFab SDK imported and configured title
  2. PlayFab title registered

Note: this guide omits the Chat application settings. For your Chat Application to be integrated, create new Photon chat application and enter the app ID in the corresponding boxes in Unity and in PlayFab Game Manager - Photon Add-on Page.

Setting up Photon Application

Once you have registered and logged into Photon Dashboard, create a new app (1):

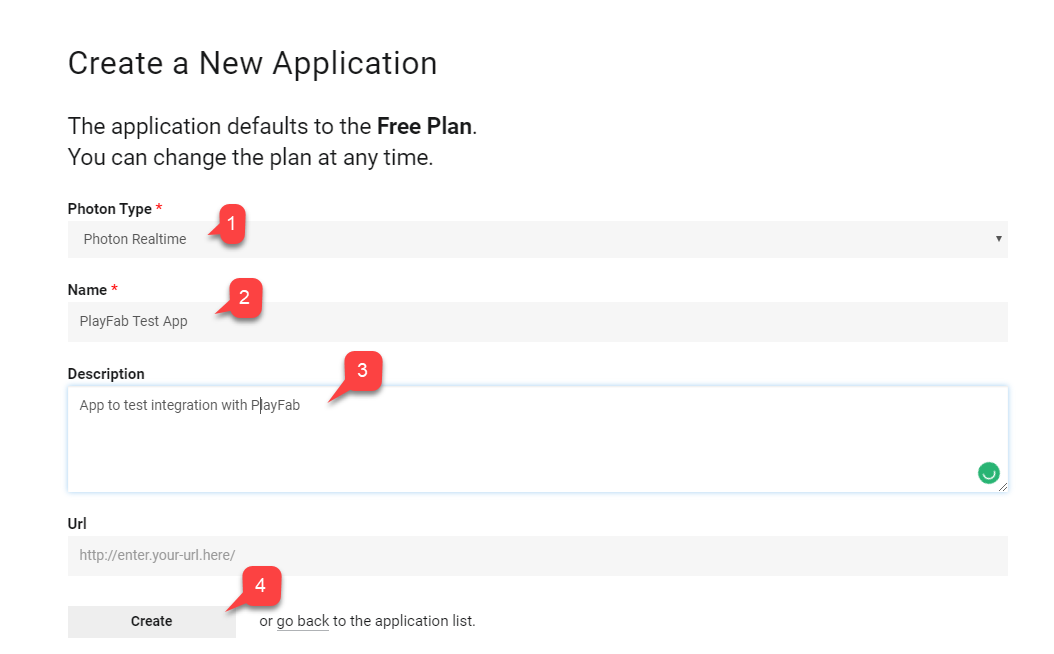

Select "Realtime" application type (1), pick a name (2) and description (3). Submit, by clicking "Create" (4):

Setting up Authentication

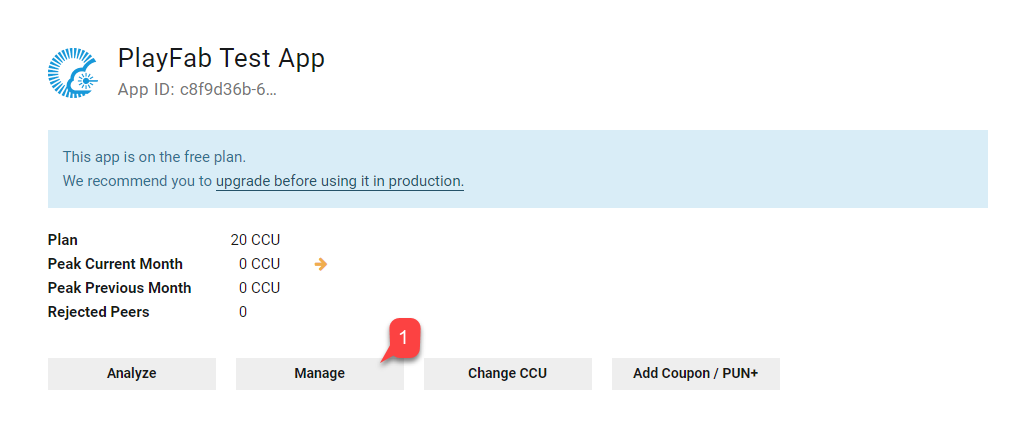

Find newly created application in the list and click "Manage" (1):

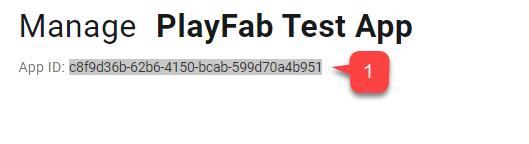

Application dashboard will open. Find and save the App Id (1) located under the page title:

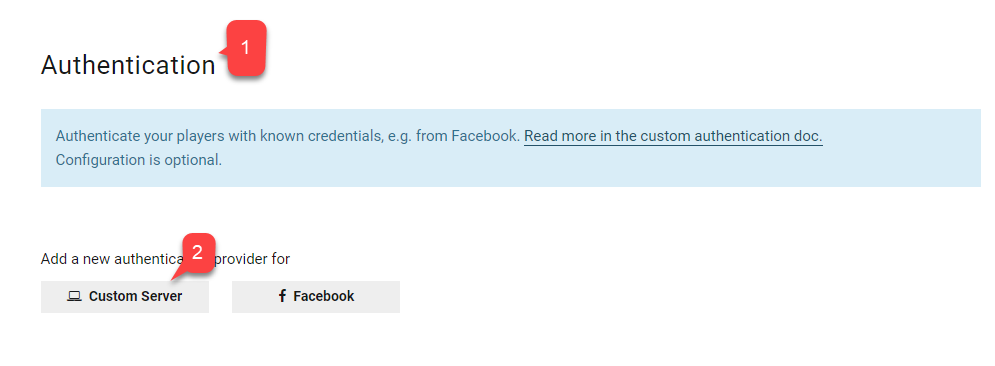

Then locate "Authentication" section (1) and select "Custom Server" (2):

The next page will let you configure Authentication URL for Photon. The format is:

https://{PlayFabTitleId}.playfabapi.com/photon/authenticate

Replace title id place holder with your own title ID:

{PlayFabTitleId}

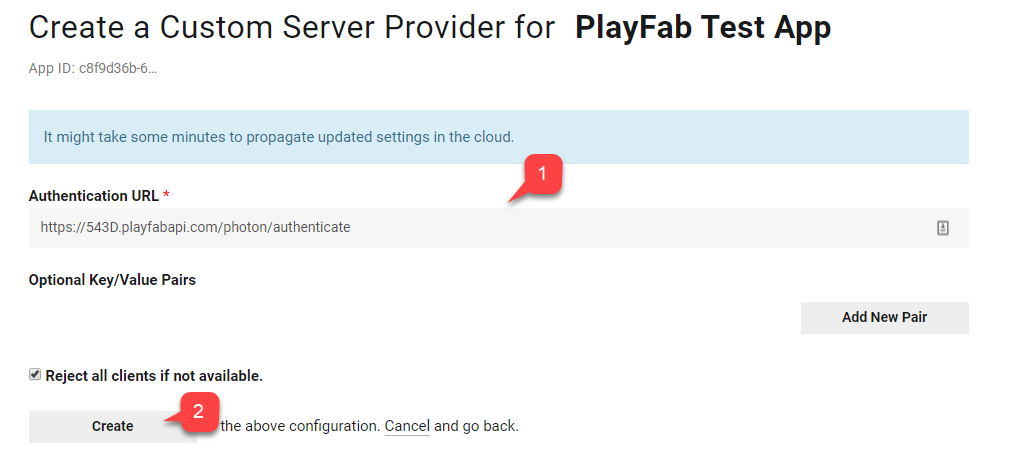

Enter the URL (1) and submit by clicking "Create" (2):

Setting up PlayFab title for Photon

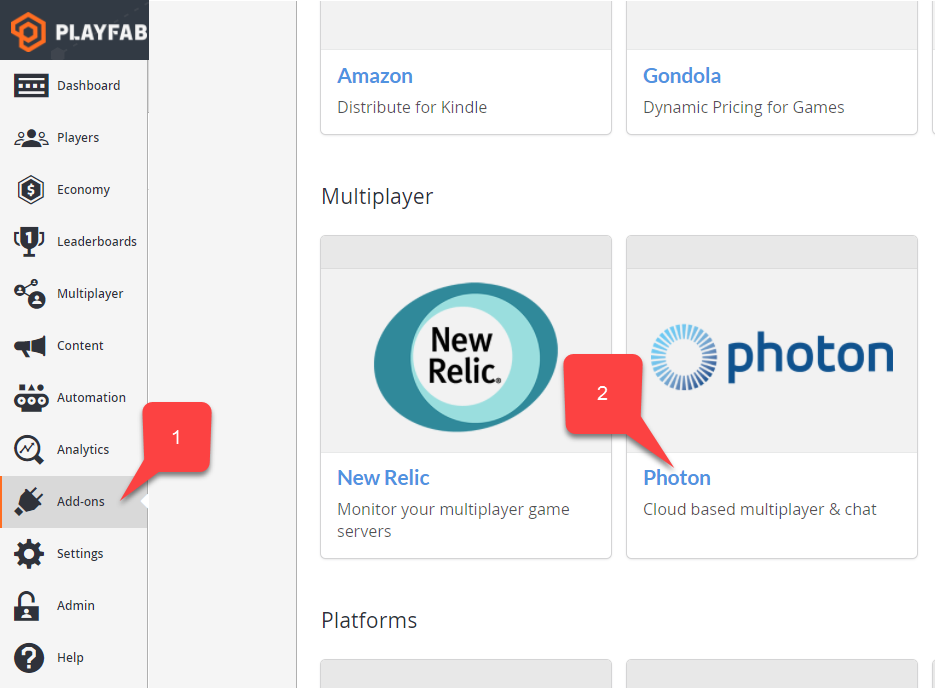

Navigate to your title game manager page. Navigate to "Add-ons" tab (1). In the list of add-ons find and select "Photon" (2), as shown on the picture below:

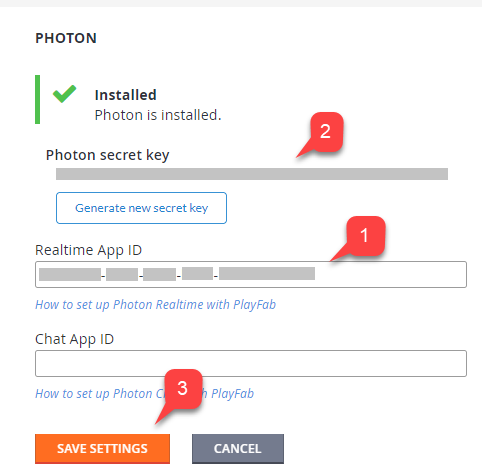

Photon add-on page will allow to install Photon by specifying you Photon Realtime Application ID (1). Optionally, you may specify Chat Application Id. Once you install the add-on (3), Secret Key will be generated (2). Save it, as it will come in handy when configuring web-hooks:

Setting Photon Web-hooks

As an optional integration, Photon may transmit certain events to your PlayFab Cloud Script. This is done by means of Web-hooks: you specify base URL and then you specify path for each of available events. A path is, effectively, a handler name implemented in your Cloud Script.

Base URL will have the following format:

https://{PlayFabTitleId}.playfablogic.com/webhook/1/prod/{PhotonSecretKey}

Make sure to replace title id placeholder with your own title id:

{PlayFabTitleId}

Make sure to replace Photon Secret Key token with the secret key you generated on Photon Add-on Page:

{PhotonSecretKey}

Fill in the base URL (1). Assign Cloud Script handler name for each of available events (2). Remove any CustomHttpHeaders (3). Submit by clicking "Save" (4):

Setting up Unity project

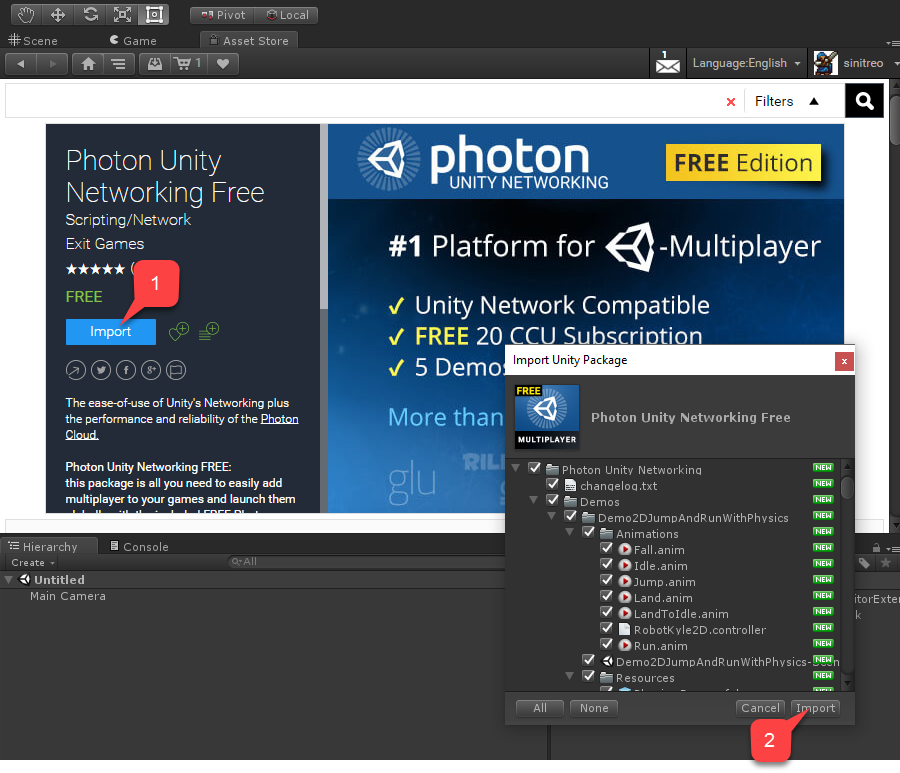

The guide assumes you already have PlayFab SDK imported, set up and title setting configured. Start by navigating to the asset store. Locate Photon Unity Networking Free package. click "Import" (1). You may inspect the imported files. Then click "Import" (2):

Right after import process finishes, "PUN Setup" window will open. Enter your Realtime Application ID (1) and click "Setup Project" (2). Once the setup finishes, click "Done" (3):

If AppId was accepted, Photon Server Settings object will be selected and accessible through standard Unity Inspector window. To manually access Server Settings object, please, navigate to top window panel and select "Window" -> "Photon Unity Networking" (1) -> "Highlight Server Settings" (2).

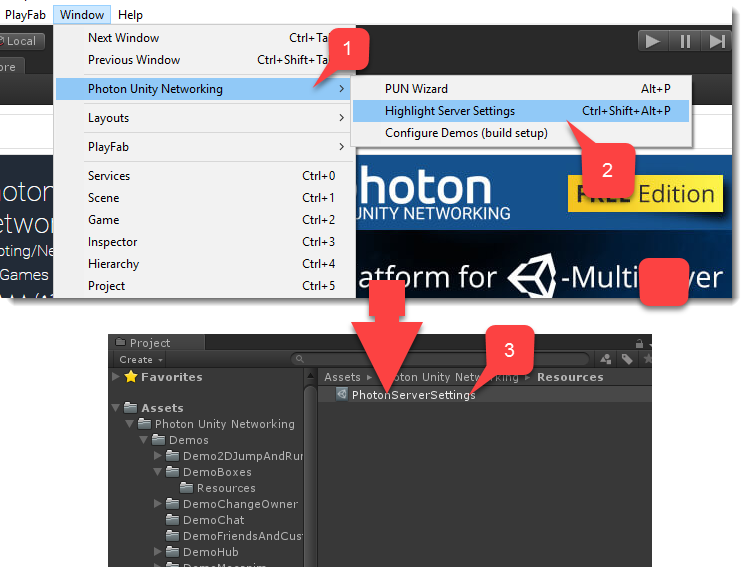

Standard Unity project window will reveal the PhotonServerSettings (3) object. Click the object to reveal it's settings in the Unity inspector window:

As part of PhotonServerSettings, you may, optionally, assign Chat Application ID.

At this point the project is configured.

Implementing PlayFab to Photon authentication

When you enable Photon add-on for your title and configure authentication on Photon Application Dashboard, PlayFab allows you to authenticate existing PlayFab players inside the photon environment. This means you may completely avoid implementing any user management for Photon. This feature requires minimum setup in Unity. In fact, you do not even have to change any of Photon code from the example project. Instead, you can introduce PlayFab authentication as a small isolated script.

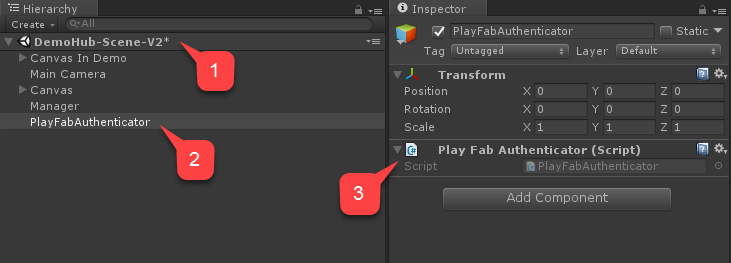

Navigate to "DemoHub-Scene-V2" scene (1) from the Photon Unity Networking Free package. This scene is, indeed, a hub for all the examples from the package. It is the first scene to load, so let us add small script to enable PlayFab to Photon authentication. Create an empty GameObject called "PlayFabAuthenticator" (2). Create and add a component with the same name to this GameObject (3):

The code for PlayFabAuthenticator component is the following (please, read the comments for the explanation):

using PlayFab;
using PlayFab.ClientModels;
using UnityEngine;

public class PlayFabAuthenticator : MonoBehaviour {

    private string _playFabPlayerIdCache;

    //Run the entire thing on awake
    public void Awake() {
        AuthenticateWithPlayFab();
    }

    /*
     * Step 1
     * We authenticate current PlayFab user normally.
     * In this case we use LoginWithCustomID API call for simplicity.
     * You can absolutely use any Login method you want.
     * We use PlayFabSettings.DeviceUniqueIdentifier as our custom ID.
     * We pass RequestPhotonToken as a callback to be our next step, if
     * authentication was successful.
     */
    private void AuthenticateWithPlayFab(){
        LogMessage("PlayFab authenticating using Custom ID...");

        PlayFabClientAPI.LoginWithCustomID(new LoginWithCustomIDRequest()
        {
            CreateAccount = true,
            CustomId = PlayFabSettings.DeviceUniqueIdentifier
        }, RequestPhotonToken, OnPlayFabError);
    }

    /*
    * Step 2
    * We request Photon authentication token from PlayFab.
    * This is a crucial step, because Photon uses different authentication tokens
    * than PlayFab. Thus, you cannot directly use PlayFab SessionTicket and
    * you need to explicitely request a token. This API call requires you to
    * pass Photon App ID. App ID may be hardcoded, but, in this example,
    * We are accessing it using convenient static field on PhotonNetwork class
    * We pass in AuthenticateWithPhoton as a callback to be our next step, if
    * we have acquired token succesfully
    */
    private void RequestPhotonToken(LoginResult obj) {
        LogMessage("PlayFab authenticated. Requesting photon token...");

        //We can player PlayFabId. This will come in handy during next step
        _playFabPlayerIdCache = obj.PlayFabId;

        PlayFabClientAPI.GetPhotonAuthenticationToken(new GetPhotonAuthenticationTokenRequest()
        {
            PhotonApplicationId = PhotonNetwork.PhotonServerSettings.AppID
        }, AuthenticateWithPhoton, OnPlayFabError);
    }

    /*
     * Step 3
     * This is the final and the simplest step. We create new AuthenticationValues instance.
     * This class describes how to authenticate a players inside Photon environment.
     */
    private void AuthenticateWithPhoton(GetPhotonAuthenticationTokenResult obj) {
        LogMessage("Photon token acquired: " + obj.PhotonCustomAuthenticationToken + "  Authentication complete.");

        //We set AuthType to custom, meaning we bring our own, PlayFab authentication procedure.
        var customAuth = new AuthenticationValues { AuthType = CustomAuthenticationType.Custom };

        //We add "username" parameter. Do not let it confuse you: PlayFab is expecting this parameter to contain player PlayFab ID (!) and not username.
        customAuth.AddAuthParameter("username", _playFabPlayerIdCache);    // expected by PlayFab custom auth service

        //We add "token" parameter. PlayFab expects it to contain Photon Authentication Token issues to your during previous step.
        customAuth.AddAuthParameter("token", obj.PhotonCustomAuthenticationToken);

        //We finally tell Photon to use this authentication parameters throughout the entire application.
        PhotonNetwork.AuthValues = customAuth;
    }

    private void OnPlayFabError(PlayFabError obj) {
        LogMessage(obj.GenerateErrorReport());
    }

    public void LogMessage(string message) {
        Debug.Log("PlayFab + Photon Example: " + message);
    }
}

Testing PlayFab to Photon authentication

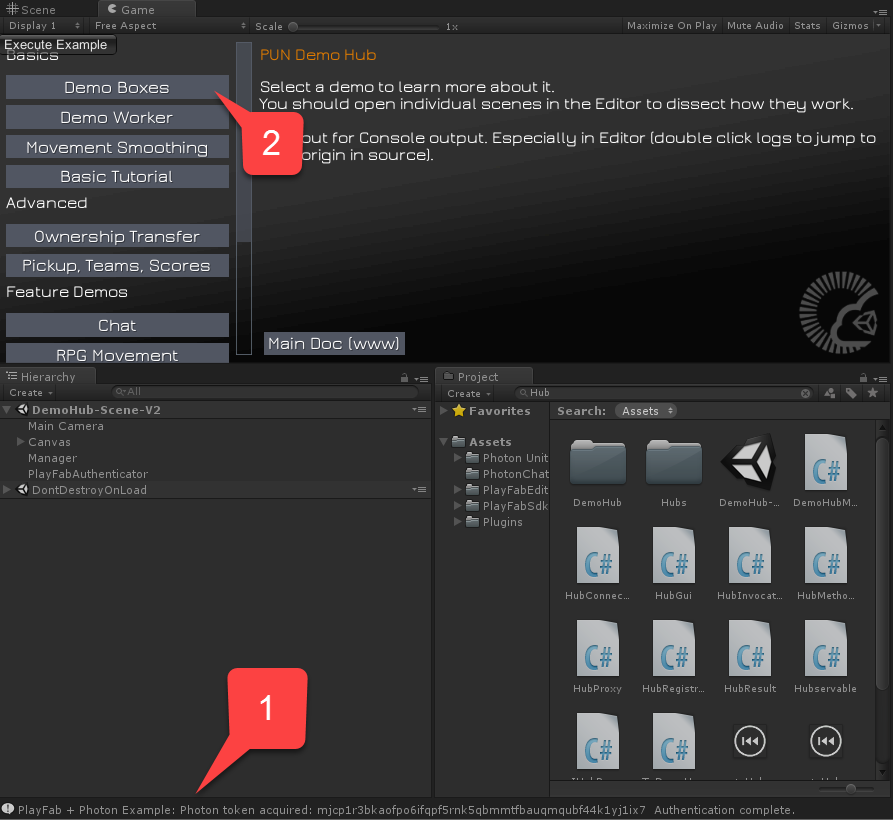

Start the scene (1) and inspect the flow of console messages (2). Control that:

  1. Authentication to PlayFab itself was successful (3)
  2. Photon token was acquired (4)

The picture below shows the correct flow:

Once Photon token has been acquired, we are good to check some of Photon demos. For example, we can start demo called "Demo Boxes" . Ensure that PlayFab authentication is complete, then click "Demo Boxes" (1), then click "Load Demo" (2), as shown on the picture below:

Photon will start outputting debug messages. Thus, by monitoring your console you can easily spot if you have any authentication issue:

Ensure that no "Authentication Denied" errors present in the console. At this point, you have set up minimal PlayFab and Photon integration

Photon Room Events + Cloud Script

Photon matchmaking system has a notion of room. If you are not familiar with this concept, please consult with the Photon Matchmaking Guide. PlayFab allows you to intercept various room events. The following room events require only Cloud Script to be intercepted

  • RoomCreated
  • RoomJoined
  • RoomLeft
  • RoomClosed

The following events will require additional control over unity code to be intercepted (details are given later in this document):

  • RoomPropertyUpdated
  • RoomEventRaised

Warning: Once you introduce a handler for room event, it becomes essential part of event handling flow. Thus, errors produced while running your Cloud Script may cause problems for the entire system. For example, if "RoomCreated' handler throws an error, your clients will throw an error as well and will not be able to connect properly.

Let us construct PlayFab Cloud Script by defining handler for each event type one by one.

Room Created

"Room Created" handler is invoked every time photon room is created. The following Cloud Script handler will intercept such event

// Triggered automatically when a Photon room is first created
handlers.RoomCreated = function (args) {
    return { ResultCode : 0, Message: 'Success' };
};

You may acquire additional data about the event using 'args' argument. The example of 'args' payload is given below:

{
  "ActorNr": 1,
  "AppVersion": "1.2_1.85",
  "AppId": "bfd5f98b-c6a4-4763-80d9-824d20db842b",
  // Options with which the room was created.
  "CreateOptions": {
    "MaxPlayers": 4,
    "LobbyId": null,
    "LobbyType": 0,
    "CustomProperties": {

    },
    "EmptyRoomTTL": 0,
    "PlayerTTL": 0,
    "CheckUserOnJoin": false,
    "DeleteCacheOnLeave": true,
    "SuppressRoomEvents": false,
    "PublishUserId": false,
    "ExpectedUsers": null
  },
  // Unique game identifier
  "GameId": "8b8322de-096d-4481-a2b2-8db8bb45cfef",
  "Region": "EU",
  "Type": "Create",
  // User that caused the room to be created
  "UserId": "834D5AA5BAB1DFB6",
  "Username": ""
}

Room Joined

"Room Joined" handler is invoked every time player joins the room.  The following Cloud Script handler will intercept such event:

// Triggered automatically when a player joins a Photon room
handlers.RoomJoined = function (args) {
    return { ResultCode : 0, Message: 'Success' };
};

This callback is not invoked for the very first user entering the room. Use "Room created" to intercept the first player join.

You may acquire additional data about the event using 'args' argument. The example of 'args' payload is given below:

{
  "ActorNr": 2,
  "AppVersion": "1.2_1.85",
  "AppId": "bfd5f98b-c6a4-4763-80d9-824d20db842b",
  // Unique Game Identifier
  "GameId": "b0f55a2e-431d-402a-9809-b0240443267e",
  "Region": "EU",
  "Type": "Join",
  // Id of the player that has joined
  "UserId": "AAC7634BF46289DF",
  "Username": ""
}

Room Left

"Room Left" handler is invoked every time player leaves the room.  The following Cloud Script handler will intercept such event:

// Triggered automatically when a player leaves a Photon room
handlers.RoomLeft = function (args) {
    return { ResultCode : 0, Message: 'Success' };
};

You may acquire additional data about the event using 'args' argument. The example of 'args' payload is given below:

{
  "ActorNr": 2,
  "AppVersion": "1.2_1.85",
  "AppId": "bfd5f98b-c6a4-4763-80d9-824d20db842b",
  // Unique Game Identifier
  "GameId": "b0f55a2e-431d-402a-9809-b0240443267e",
  "IsInactive": false,
  "Reason": "0",
  "Region": "EU",
  "Type": "ClientDisconnect",
  // Id of the user that has left the room
  "UserId": "AAC7634BF46289DF",
  "Username": ""
}

Room Closed

"Room Closed" handler is invoked every time all the last player leaves the room and room has no players left. The following Cloud Script handler will intercept such event:

// Triggered automatically when a Photon room closes
// Note: currentPlayerId is undefined in this function
handlers.RoomClosed = function (args) {
    return { ResultCode : 0, Message: 'Success' };
};

You may acquire additional data about the event using 'args' argument. The example of 'args' payload is given below:

{
  "ActorCount": 0,
  "ActorNr": 1,
  "AppVersion": "1.2_1.85",
  "AppId": "bfd5f98b-c6a4-4763-80d9-824d20db842b",
  // Unique game identifier
  "GameId": "b0f55a2e-431d-402a-9809-b0240443267e",
  "Region": "EU",
  "State2": {
    "ActorList": [

    ]
  },
  "Type": "Close"
}

Room Property Updated

"Room Property Updated" handler is invoked every time room property is changed. The following Cloud Script handler will intercept such event:

// Triggered automatically when a Photon room game property is updated.
// Note: currentPlayerId is undefined in this function
handlers.RoomPropertyUpdated = function (args) {
    return { ResultCode : 0, Message: 'Success' };
};

Note: 'currentPlayerId' is undefined in this handler. If room property was changed from the client, you may use 'args' argument and refer to 'UserId' to acquire the player in charge.

You may acquire additional data about the event using 'args' argument. The example of 'args' payload is given below:

{
  "ActorNr": 1,
  "AppVersion": "1.2_1.85",
  "AppId": "bfd5f98b-c6a4-4763-80d9-824d20db842b",
  // Custom Room Properties
  "Properties": {
    "CustomProperty": "It's Value"
  },
  "GameId": "8b8322de-096d-4481-a2b2-8db8bb45cfef",
  "Region": "EU",
  "State": {
    "ActorCounter": 1,
    "ActorList": [
      {
        "ActorNr": 1,
        "UserId": "834D5AA5BAB1DFB6",
        "Username": "",
        "IsActive": true,
        "Binary": "RGIAAAEBRAAAAAFi\/3MAAA==",
        "DEBUG_BINARY": {
          "1": {
            "255": ""
          }
        }
      }
    ],
    "Binary": {
      "18": "RAAAAANi+nkAAHNzAA1QbGF5ZXJJbmRleGVzRGlpAAEAAAABAAAAAHMADkN1c3RvbVByb3BlcnR5cwAKSXQncyBWYWx1ZQ=="
    },
    "CheckUserOnJoin": false,
    "CustomProperties": {

    },
    "DeleteCacheOnLeave": true,
    "EmptyRoomTTL": 0,
    "IsOpen": true,
    "IsVisible": true,
    "LobbyType": 0,
    "LobbyProperties": [

    ],
    "MaxPlayers": 4,
    "PlayerTTL": 0,
    "SuppressRoomEvents": false,
    "Slice": 0,
    "DebugInfo": {
      "DEBUG_PROPERTIES_18": {
        "250": [

        ],
        "PlayerIndexes": {
          "1": 0
        },
        "CustomProperty": "It's Value"
      }
    },
    "ExcludedActors": [

    ],
    "PublishUserId": false,
    "ExpectedUsers": [

    ]
  },
  "Type": "Game",
  "UserId": "834D5AA5BAB1DFB6",
  "Username": ""
}

When changing custom room properties using Unity Photon client, it is important to mark the call so, that it passes the event to WebHook (PlayFab in this case):

// Properties updates ( this hashtable contains the properties to be changed. Properties not mentioned here will stay as is
var properties = new ExitGames.Client.Photon.Hashtable() { { "CustomProperty" , "It's Value" } };

// Control set. Empty in this case, because our property has not existed before.
// Otherwise you would include previous value of the property.
var expectedProperties = new ExitGames.Client.Photon.Hashtable();

// Set Custom Properties call. Notice the last argument set to "true"
// This tells Photon to forward event to the webhook.
PhotonNetwork.room.SetCustomProperties(properties, expectedProperties, true);

Room Event Raised

"Room Event Raised" is called every time custom room event is raised. The following Cloud Script handler will intercept such event:

// Triggered by calling "OpRaiseEvent" on the Photon client. The "args.Data" property is
// set to the value of the "customEventContent" HashTable parameter, so you can use
// it to pass in arbitrary data.
handlers.RoomEventRaised= function (args) {
    return { ResultCode : 0, Message: 'Success' };
};

You may acquire additional data about the event using 'args' argument. The example of 'args' payload is given below:

{
  "ActorNr": 1,
  "AppVersion": "1.2_1.85",
  "AppId": "bfd5f98b-c6a4-4763-80d9-824d20db842b",
  // Custom event data
  "Data": {
    "Hello": "World"
  },
  "GameId": "8b8322de-096d-4481-a2b2-8db8bb45cfef",
  "Region": "EU",
  "State": {
    "ActorCounter": 1,
    "ActorList": [
      {
        "ActorNr": 1,
        "UserId": "834D5AA5BAB1DFB6",
        "Username": "",
        "IsActive": true,
        "Binary": "RGIAAAEBRAAAAAFi\/3MAAA==",
        "DEBUG_BINARY": {
          "1": {
            "255": ""
          }
        }
      }
    ],
    "Binary": {
      "18": "RAAAAAJi+nkAAHNzAA1QbGF5ZXJJbmRleGVzRGlpAAEAAAABAAAAAA=="
    },
    "CheckUserOnJoin": false,
    "CustomProperties": {

    },
    "DeleteCacheOnLeave": true,
    "EmptyRoomTTL": 0,
    "IsOpen": true,
    "IsVisible": true,
    "LobbyType": 0,
    "LobbyProperties": [

    ],
    "MaxPlayers": 4,
    "PlayerTTL": 0,
    "SuppressRoomEvents": false,
    "Slice": 0,
    "DebugInfo": {
      "DEBUG_PROPERTIES_18": {
        "250": [

        ],
        "PlayerIndexes": {
          "1": 0
        }
      }
    },
    "ExcludedActors": [

    ],
    "PublishUserId": false,
    "ExpectedUsers": [

    ]
  },
  "Type": "Event",
  // PlayFab User Id if he/she was the source of the event
  "UserId": "834D5AA5BAB1DFB6",
  "Username": "",
  // Event code
  "EvCode": 15
}

When raising custom room events using Unity Photon client, it is important to mark the call so, that it passes the event to WebHook (PlayFab in this case):

var data = new Dictionary<string,object>() {
    { "Hello" , "World" }
};

// Raise custom room event
// Replace 15 with any custom event code of your choice [0..299]
PhotonNetwork.RaiseEvent(15, data, true, new RaiseEventOptions() {
    ForwardToWebhook = true, // Mark call to pass event to WebHook (PlayFab in this case)
});

Testing Room Event Handlers

This example extends the previous example (PlayFab + Photon authentication).

Upload the following Cloud Script for your title:

handlers.RoomCreated = function (args) {
    server.WriteTitleEvent({
    	EventName : "room_created"
    });
    return { ResultCode : 0, Message: 'Success' };
};

handlers.RoomJoined = function (args) {
    server.WriteTitleEvent({
    	EventName : "room_joined"
    });
    return { ResultCode : 0, Message: 'Success' };
};

handlers.RoomLeft = function (args) {
    server.WriteTitleEvent({
    	EventName : "room_left"
    });
    return { ResultCode : 0, Message: 'Success' };
};

handlers.RoomClosed = function (args) {
    server.WriteTitleEvent({
    	EventName : "room_closed"
    });
    return { ResultCode : 0, Message: 'Success' };
};

handlers.RoomPropertyUpdated = function (args) {
    server.WriteTitleEvent({
    	EventName : "room_property_changed"
    });
    return { ResultCode : 0, Message: 'Success' };
};

handlers.RoomEventRaised = function (args) {
    server.WriteTitleEvent({
    	EventName : "room_event_raised"
    });
    return { ResultCode : 0, Message: 'Success' };
};

The code about does nothing more than posting new title event whenever Photon callback is invoked. Being of no use in production, this example will let us clearly see how the callbacks are invoked.

Extend the PlayFabAuthenticator script by including new example code that will raise custom event and set custom room property. The extended version also utilizes Awake method to not destroy object between scene loads:

using System.Collections.Generic;
using PlayFab;
using PlayFab.ClientModels;
using UnityEngine;

public class PlayFabAuthenticator : MonoBehaviour {

    private string _playFabPlayerIdCache;


    //Run the entire thing on awake
    public void Awake() {
        AuthenticateWithPlayFab();
        DontDestroyOnLoad(gameObject);
    }


    /*
     * Step 1
     * We authenticate current PlayFab user normally.
     * In this case we use LoginWithCustomID API call for simplicity.
     * You can absolutely use any Login method you want.
     * We use PlayFabSettings.DeviceUniqueIdentifier as our custom ID.
     * We pass RequestPhotonToken as a callback to be our next step, if
     * authentication was successful.
     */
    private void AuthenticateWithPlayFab()  {
        LogMessage("PlayFab authenticating using Custom ID...");

        PlayFabClientAPI.LoginWithCustomID(new LoginWithCustomIDRequest()
        {
            CreateAccount = true,
            CustomId = PlayFabSettings.DeviceUniqueIdentifier+"EDITOR"
        }, RequestPhotonToken, OnPlayFabError);
    }

    /*
    * Step 2
    * We request Photon authentication token from PlayFab.
    * This is a crucial step, because Photon uses different authentication tokens
    * than PlayFab. Thus, you cannot directly use PlayFab SessionTicket and
    * you need to explicitely request a token. This API call requires you to
    * pass Photon App ID. App ID may be hardcoded, but, in this example,
    * We are accessing it using convenient static field on PhotonNetwork class
    * We pass in AuthenticateWithPhoton as a callback to be our next step, if
    * we have acquired token succesfully
    */
    private void RequestPhotonToken(LoginResult obj) {
        LogMessage("PlayFab authenticated. Requesting photon token...");

        //We can player PlayFabId. This will come in handy during next step
        _playFabPlayerIdCache = obj.PlayFabId;

        PlayFabClientAPI.GetPhotonAuthenticationToken(new GetPhotonAuthenticationTokenRequest()
        {
            PhotonApplicationId = PhotonNetwork.PhotonServerSettings.AppID
        }, AuthenticateWithPhoton, OnPlayFabError);
    }

    /*
     * Step 3
     * This is the final and the simplest step. We create new AuthenticationValues instance.
     * This class describes how to authenticate a players inside Photon environment.
     */
    private void AuthenticateWithPhoton(GetPhotonAuthenticationTokenResult obj) {
        LogMessage("Photon token acquired: " + obj.PhotonCustomAuthenticationToken + "  Authentication complete.");

        //We set AuthType to custom, meaning we bring our own, PlayFab authentication procedure.
        var customAuth = new AuthenticationValues { AuthType = CustomAuthenticationType.Custom };

        //We add "username" parameter. Do not let it confuse you: PlayFab is expecting this parameter to contain player PlayFab ID (!) and not username.
        customAuth.AddAuthParameter("username", _playFabPlayerIdCache);    // expected by PlayFab custom auth service

        //We add "token" parameter. PlayFab expects it to contain Photon Authentication Token issues to your during previous step.
        customAuth.AddAuthParameter("token", obj.PhotonCustomAuthenticationToken);

        //We finally tell Photon to use this authentication parameters throughout the entire application.
        PhotonNetwork.AuthValues = customAuth;
    }

    private void OnPlayFabError(PlayFabError obj) {
        LogMessage(obj.ErrorMessage);
    }

    public void LogMessage(string message) {
        Debug.Log("PlayFab + Photon Example: " + message);
    }


    // Add small button to launch our example code
    public void OnGUI() {
        if (GUILayout.Button("Execute Example ")) ExecuteExample();
    }


    // Example code which raises custom room event, then sets custom room property
    private void ExecuteExample() {

        // Raise custom room event
        var data = new Dictionary<string, object>() { {"Hello","World"} };
        var result = PhotonNetwork.RaiseEvent(15, data, true, new RaiseEventOptions()
        {
            ForwardToWebhook = true,
        });
        LogMessage("New Room Event Post: "+result);

        // Set custom room property
        var properties = new ExitGames.Client.Photon.Hashtable() { { "CustomProperty", "It's Value" } };
        var expectedProperties = new ExitGames.Client.Photon.Hashtable();
        PhotonNetwork.room.SetCustomProperties(properties, expectedProperties, true);
        LogMessage("New Room Properties Set");
    }

}

Run the hub scene and wait for PlayFab authentication to complete (1) then load the Boxes Demo scene (2):

Once the scene loads, wait for the peer to connect newly created room (1), then click "Execute Example" in the top left corner (2), then observe the console output (3) and make sure no errors pop up.

Do not forget to stop Unity from playing. This is to ensure we also receive "RoomLeft" and "RoomClosed" events.

Navigate to Title Game Manager page and observe the PlayStream panel. You should be able to see events generated as a result of our Cloud Script code handling Photon events.

  1. Initially, our Photon instance had no opened room. When we launched the example, Photon has created the room for the Boxes Demo
  2. The first player to join is the player who requested the room. So no "RoomJoined" event was recorded. We then executed our example code. First, we raised custom room event
  3. Then, we set custom room property.
  4. Then we stopped Unity play mode. This resulted in our client leaving the room.
  5. Since our disconnected client was the last one, there are no more clients and Photon closes the room.

All the events should be logged into PlayStream event flow, as shown on the picture below:

At this point, you have fully integrated Photon event support into your PlayFab title.



Did you find this helpful?
